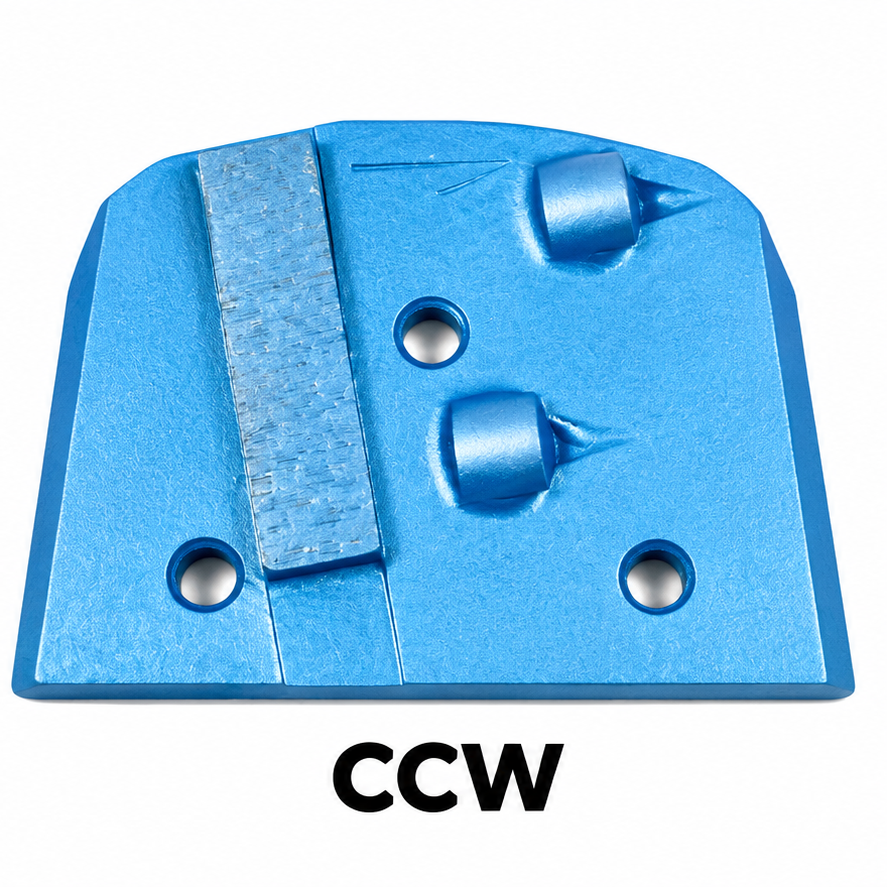

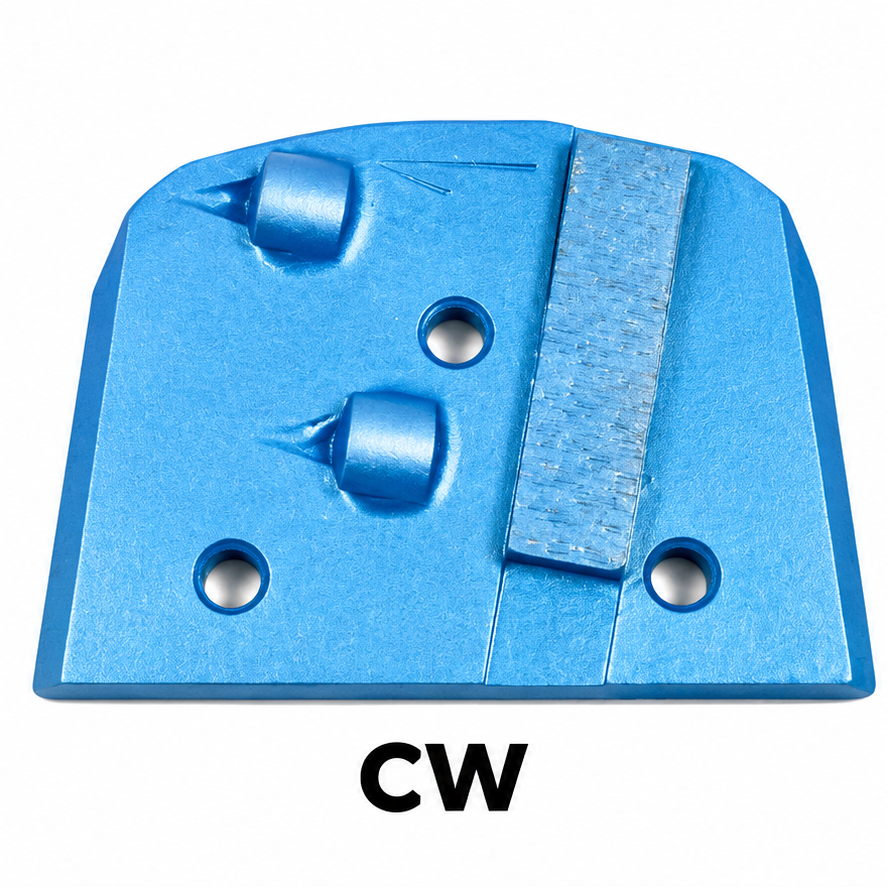

Lavina-Style 2 x 1/4" Round PCD with 30-Grit Wear Bar

Aggressive Coating Removal. Fast Material Removal. Lavina-Style Slide-Mag Compatibility.

This Lavina-style Slide-Mag / QuickChange PCD tooling features two 1/4-inch round Polycrystalline Diamond (PCD) cutters paired with a 30-grit metal-bond diamond wear bar for aggressive removal of tough coatings and other materials from concrete surfaces.

Designed for demanding removal applications, the PCD cutters aggressively cut and shear through thick surface materials while the diamond wear bar helps stabilize the tool and control cutting depth during operation.

Designed for Aggressive Coating Removal

An excellent choice for removing:

• Thick mastics
• Epoxy coatings
• Adhesives and glues
• Paint
• Elastomeric membranes
• Other thick or difficult-to-remove surface materials

2-PCD + Diamond Wear Bar Design

Each tool features two 1/4" round PCD cutters for aggressive material removal.

A 30-grit metal-bond diamond wear bar works alongside the PCD cutters to help stabilize the tool, control cutting depth, and provide additional contact with the concrete surface during removal.

This combination provides aggressive cutting performance while helping protect against excessively deep cutting into the underlying concrete.

Lavina-Style Slide-Mag / QuickChange Attachment

The Slide-Mag attachment is designed for compatibility with Lavina-style QuickChange tooling systems and provides fast installation and removal without traditional bolt-on tooling.

Compatible with select:

• Lavina
• Bartell Global
• EDCO

grinding machines equipped to accept this Slide-Mag / Lavina-style tooling configuration.

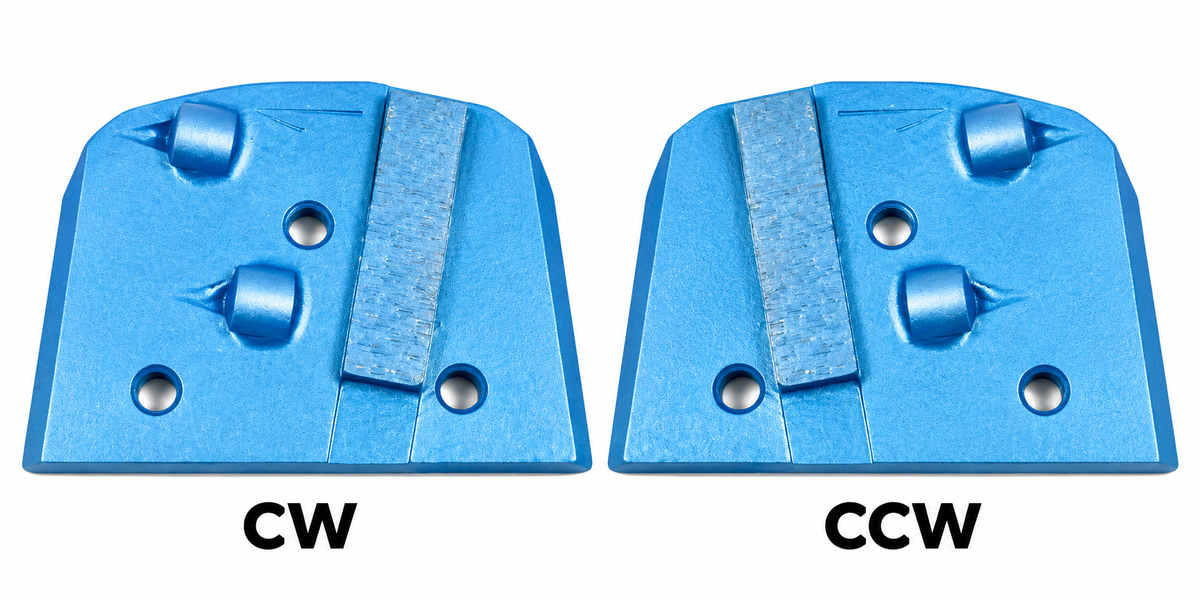

Choose the Correct Rotation

Available in both:

Clockwise (CW)
Counterclockwise (CCW)

PCD tooling is directional. Always verify the rotation direction of your grinding head before selecting your tooling. Multi-head grinders may require a combination of clockwise and counterclockwise tools.

Key Features

• Two 1/4" round PCD cutters
• 30-grit metal-bond diamond wear bar
• Designed for aggressive coating and adhesive removal
• Excellent for thick mastics, epoxies, glues, paints, and elastomeric membranes
• Lavina-style Slide-Mag / QuickChange attachment
• Available in Clockwise and Counterclockwise rotation
• Compatible with select Lavina, Bartell Global, and EDCO grinders

Not Sure Which PCD You Need?

PCD selection depends on the material being removed, grinder, tooling configuration, and rotation direction.

If you're unsure which PCD tooling is right for your machine or application, give us a call at 253-388-8063. Tell us what you're removing and which grinder you're using, and we'll help you select the appropriate tooling.

Aftermarket tooling. Lavina® is a trademark of its respective owner. This product is not represented as being manufactured or endorsed by Lavina/Superabrasive.
