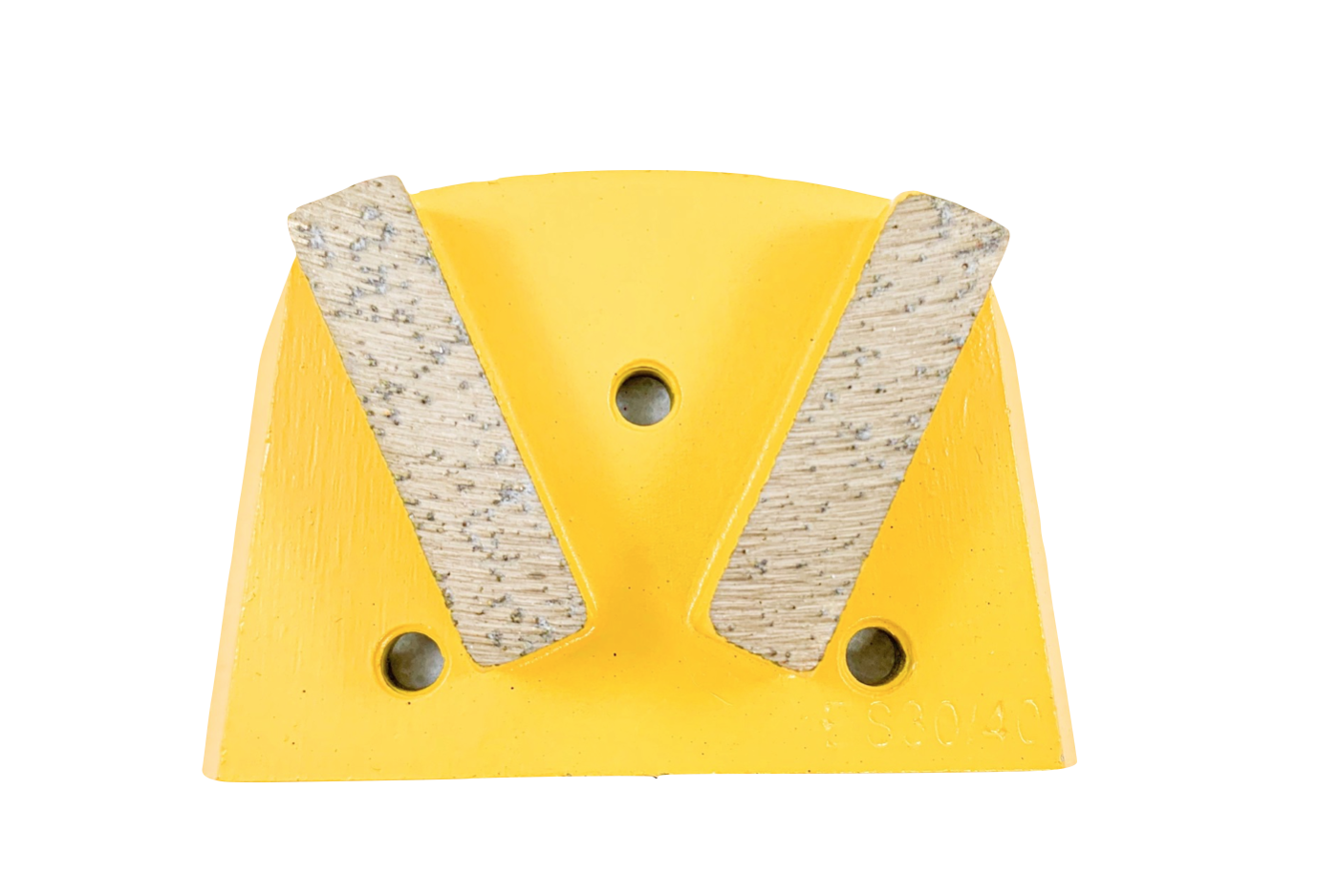

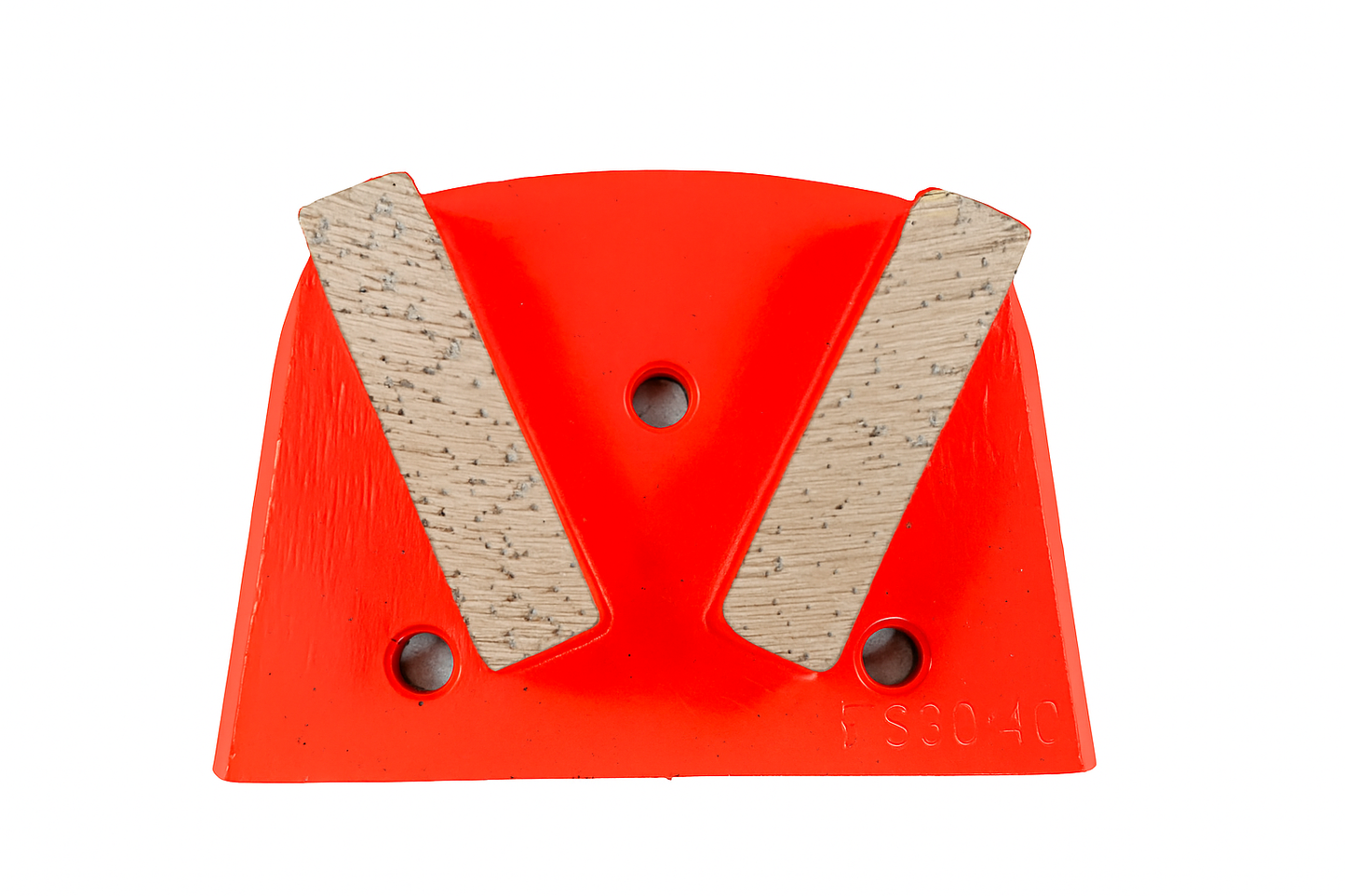

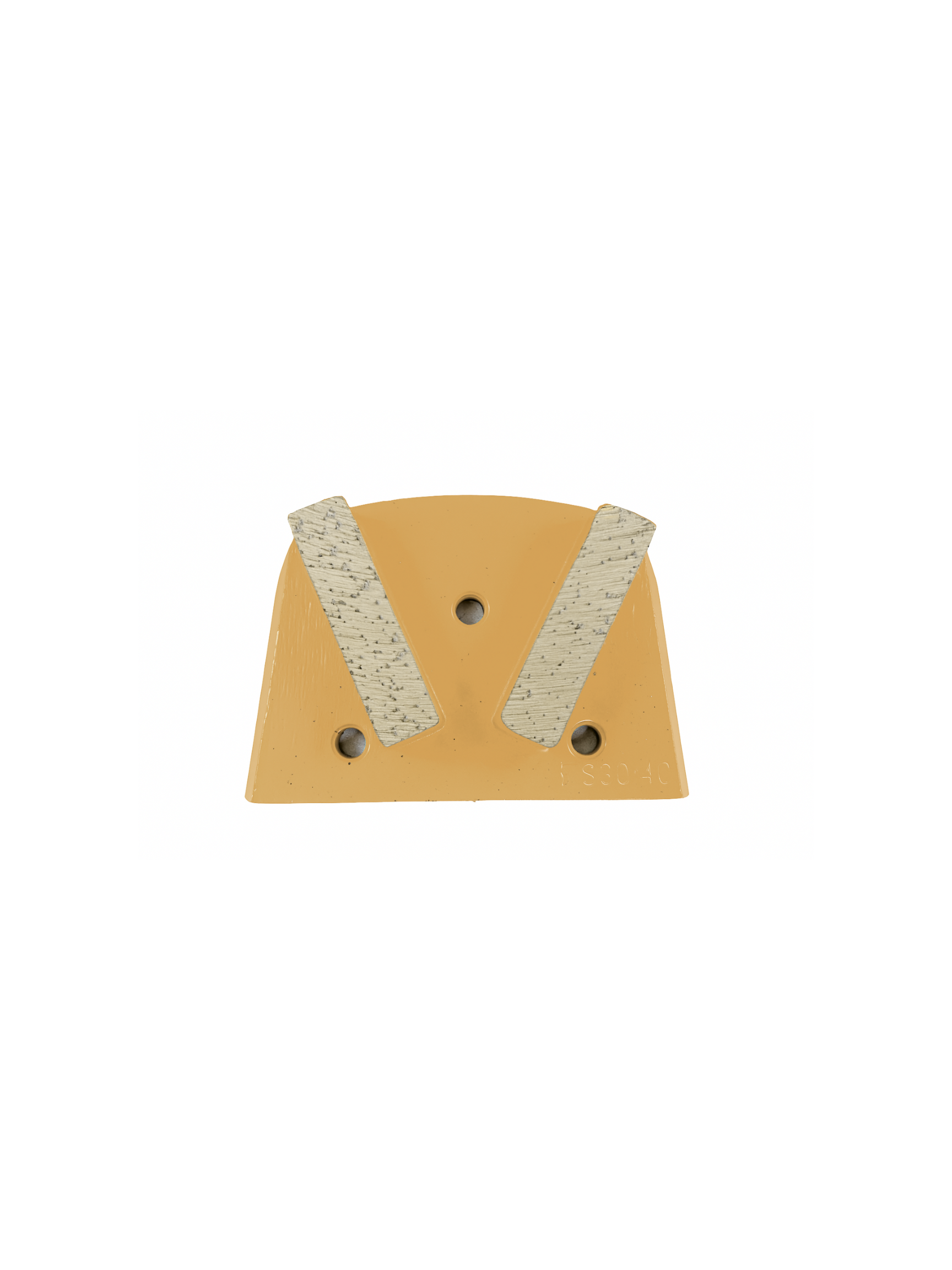

Lavina-Style Double V-Segment Metal Bond Diamond Tooling

Controlled Grinding. Consistent Performance. Extended Tool Life.

The Lavina-Style Double V-Segment Metal Bond Diamond is a professional-grade concrete grinding tool designed for surface preparation, concrete grinding, and surface refinement.

Featuring two metal-bond diamond segments arranged in a V-shaped pattern, the double-segment design provides greater surface contact than single-segment tooling. This distributes grinding pressure across two segments for a smoother, more controlled cut while providing additional diamond material for excellent tool life.

An excellent general-purpose choice for contractors looking for a balance of cutting performance, scratch consistency, and durability.

Designed for Concrete Surface Preparation

Ideal for:

• General concrete grinding
• Surface preparation before coatings
• Grinding and leveling concrete
• Removing minor surface imperfections
• Removing light coatings and surface contaminants
• Opening and profiling concrete
• Refining concrete during multi-step grinding and polishing processes

Double V-Segment Design

The two-segment V-shaped configuration provides increased surface contact with the concrete compared with single-segment tooling.

By distributing machine pressure across two diamond segments, the Double V-Segment provides a more controlled grinding action and consistent scratch pattern while still delivering efficient material removal.

With two segments sharing the workload, the tool also provides additional diamond material for excellent wear life—making it a versatile choice for everyday concrete grinding and surface preparation.

Choose the Right Bond for Your Concrete

Selecting the correct bond is critical to both cutting performance and tool life.

The harder the concrete, the softer the diamond bond.
The softer the concrete, the harder the diamond bond.

A softer bond allows the matrix to wear away more readily on hard concrete, continually exposing fresh diamond. A harder bond helps prevent premature wear when grinding softer, more abrasive concrete.

Multiple Grit Options

Available in multiple grit options to match different stages of concrete grinding and surface preparation.

Lower/coarser grits provide more aggressive material removal and leave a deeper scratch pattern, while higher/finer grits progressively refine the concrete surface.

Select your desired grit and bond from the available product options.

Lavina-Style Slide-Mag / QuickChange Attachment

Features a Slide-Mag / Lavina-style QuickChange attachment for fast installation and removal without traditional bolt-on tooling.

Compatible with select:

• Lavina
• Bartell Global
• EDCO

grinding machines equipped to accept this Slide-Mag / Lavina-style tooling configuration.

Key Features

• Two metal-bond diamond segments in a V-shaped configuration
• Greater surface contact for controlled, consistent grinding
• Excellent balance of cutting performance and tool life
• Consistent scratch pattern for surface preparation and refinement
• Available in multiple grit options

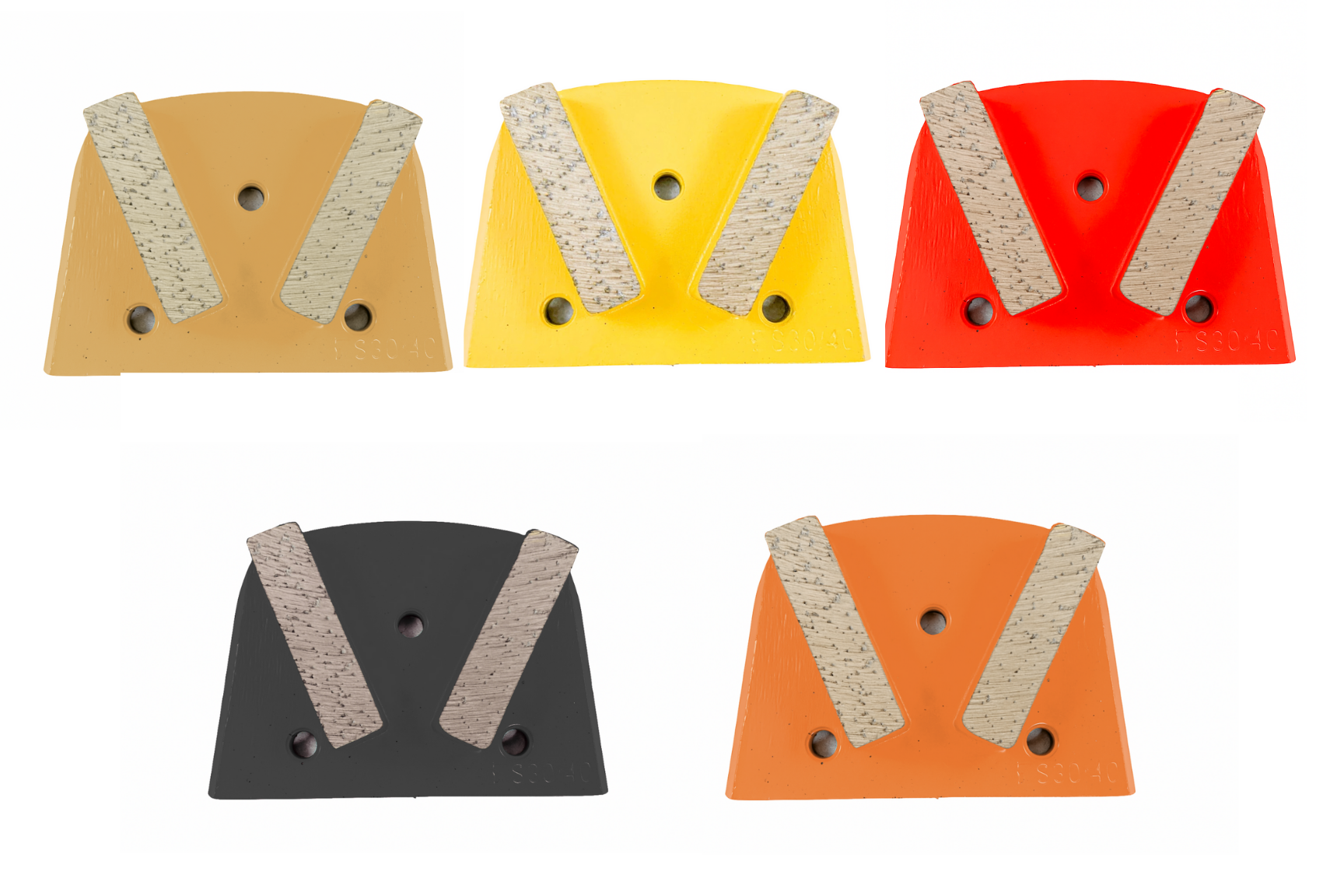

• Five bond options for varying concrete hardness
• Bond selection from Extra Soft through Extra Hard
• Slide-Mag / Lavina-style QuickChange attachment
• Suitable for concrete profiling and preparation before coatings
• Compatible with select Lavina, Bartell Global, and EDCO grinders

Single V-Segment or Double V-Segment?

Single V-Segment: Concentrates machine pressure onto one segment for a more aggressive cut. A good choice when faster material removal is the priority.

Double V-Segment: Distributes machine pressure across two segments for a more controlled grind, additional diamond material, and typically longer tool life.

Both use the same bond-selection principle—the best choice depends on your grinder, concrete, and desired production rate.

Not Sure Which Tooling You Need?

Concrete hardness, abrasiveness, surface condition, machine weight, and the desired result can all affect tooling selection.

Give us a call at 253-388-8063. Tell us about your concrete, the grinder you're using, and what you're trying to accomplish, and we'll help you select the appropriate grit, bond, and segment configuration.

Aftermarket tooling. Lavina® is a trademark of its respective owner. This product is not represented as being manufactured or endorsed by Lavina/Superabrasive.
