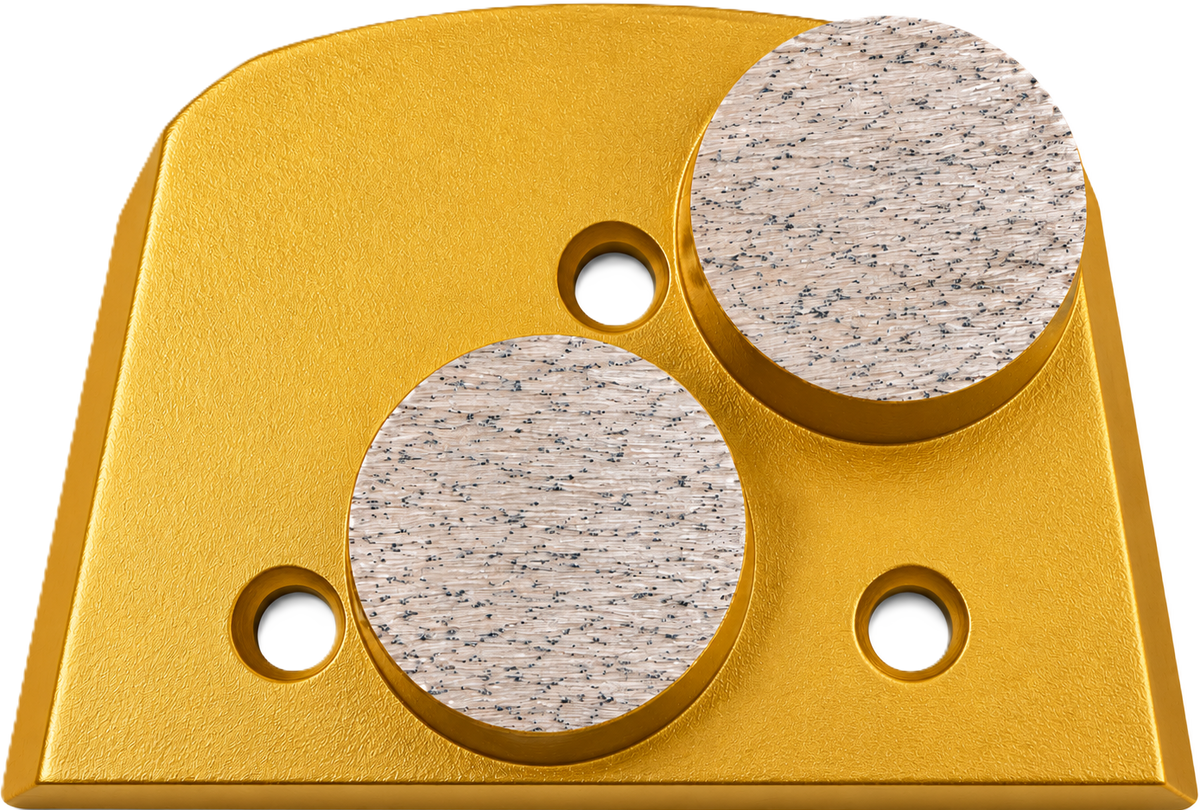

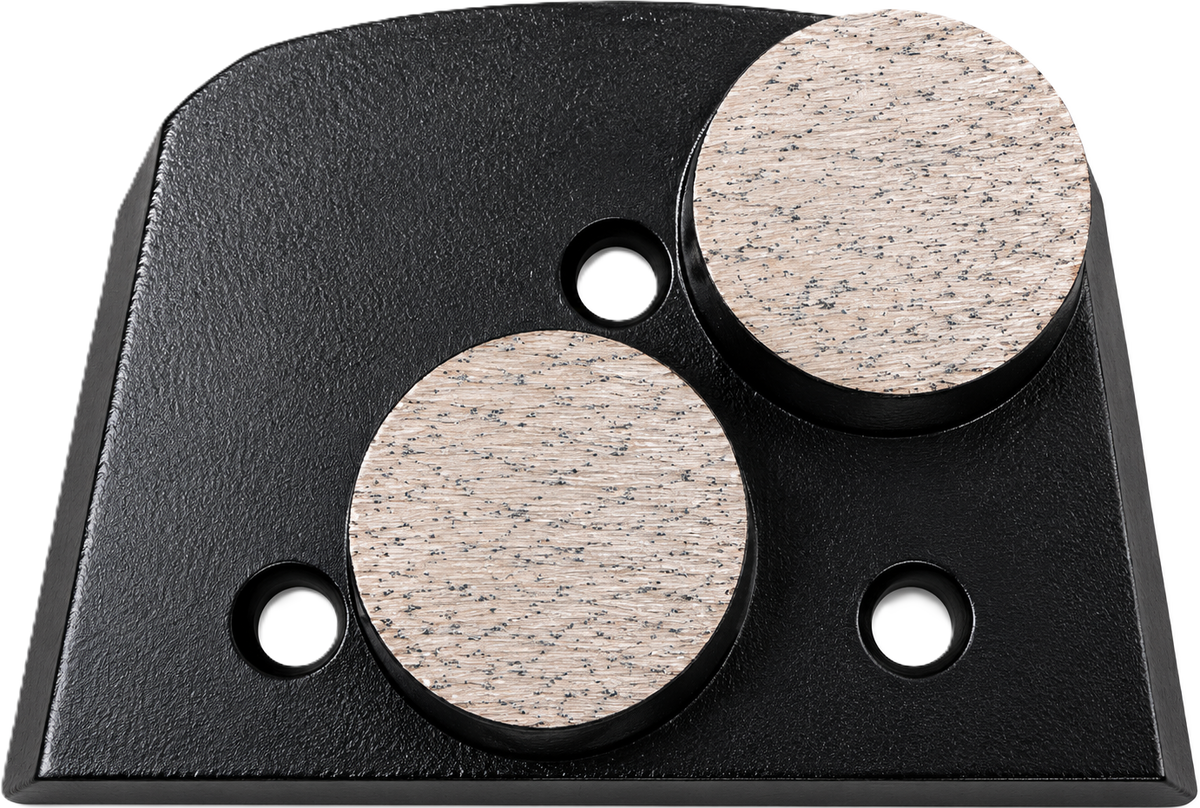

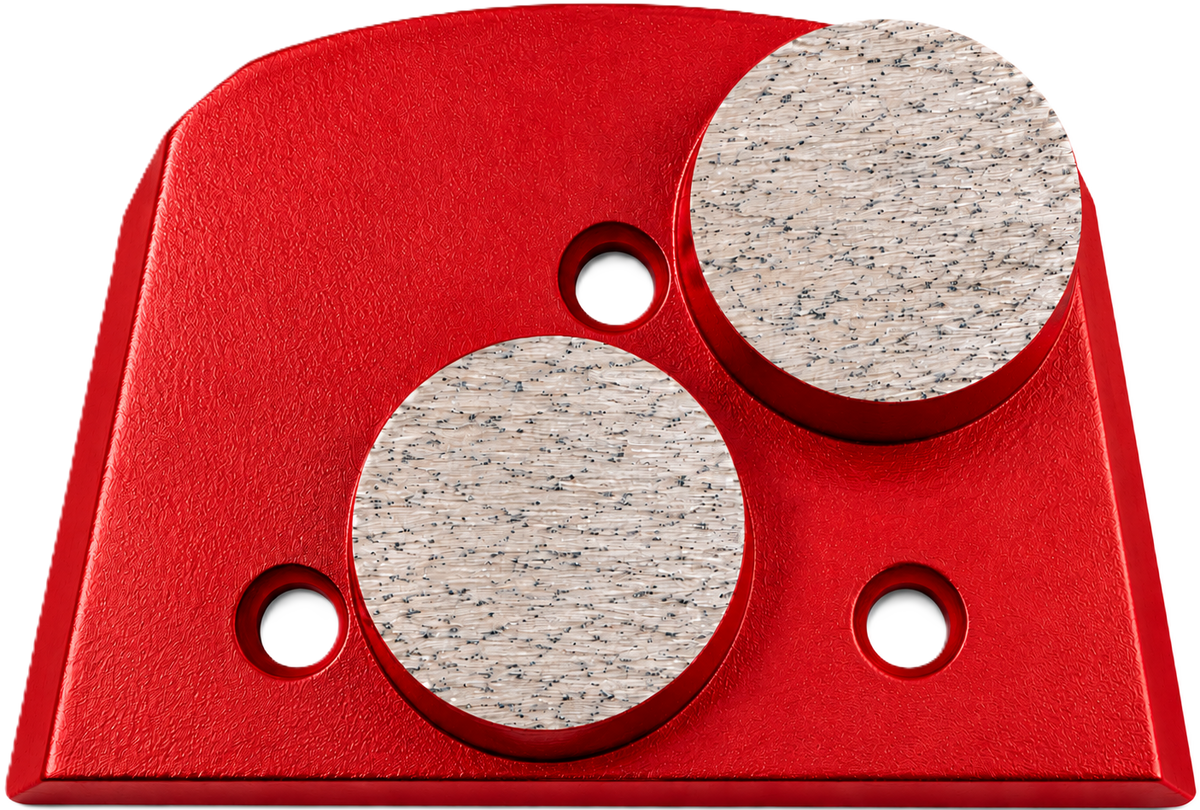

Lavina Style Double Round Segment Metal Bond Diamond Tooling

Lavina-Style Double Round Segment Metal Bond Diamond Tooling

Smooth Grinding. Increased Surface Contact. Reduced Rogue Scratching.

The Lavina-Style Double Round Segment Metal Bond Diamond is professional-grade concrete grinding tooling designed for controlled surface preparation, concrete grinding, and refinement.

Featuring two round metal-bond diamond segments, this design provides increased surface contact and eliminates the sharp segment edges found on traditional bar- or V-style tooling. The rounded profile helps produce a smoother, more consistent scratch pattern while reducing the potential for rogue or excessively deep scratches in the concrete.

The Double Round is an excellent choice when surface refinement, scratch control, and consistent results are more important than maximum cutting aggression.

Why Choose a Double Round Segment?

The larger contact area of the two round segments distributes grinding pressure across more of the concrete surface. This produces a smoother, more controlled grinding action than more aggressive segment configurations.

Because the segments have no sharp corners or leading edges, Double Round tooling is less likely to leave an isolated deep scratch that may become difficult to remove during subsequent grinding or polishing steps.

This makes the Double Round particularly useful for:

• General concrete grinding and surface preparation
• Refining concrete during multi-step grinding
• Preparing floors for polishing
• Applications where scratch consistency is important
• Grinding where minimizing rogue scratches is a priority
• Contractors looking for controlled cutting and excellent tool life

Choose the Right Bond for Your Concrete

Selecting the correct bond is critical to both cutting performance and tool life.

The harder the concrete, the softer the diamond bond.
The softer the concrete, the harder the diamond bond.

A softer bond allows the matrix to wear away more readily on hard concrete, continually exposing fresh diamond. A harder bond helps prevent premature wear when grinding softer, more abrasive concrete.

Multiple Grit Options

Available in multiple grit options to match different stages of concrete grinding and surface preparation.

Coarser grits provide greater material removal and leave a deeper scratch pattern, while progressively finer grits refine the surface and help prepare the concrete for subsequent grinding or polishing steps.

Select your desired grit and bond from the available product options.

Lavina-Style Slide-Mag / QuickChange Attachment

Features a Slide-Mag / Lavina-style QuickChange attachment for fast installation and removal without traditional bolt-on tooling.

Compatible with select Lavina, Bartell Global, and EDCO grinding machines equipped to accept the Slide-Mag / Lavina-style tooling configuration.

Key Features

• Two round metal-bond diamond segments
• Increased surface contact for smooth, controlled grinding
• Rounded segments with no sharp corners or edges
• Helps reduce rogue and excessively deep scratches
• Consistent scratch pattern for grinding and refinement
• Excellent choice for multi-step grinding and polishing processes
• Available in multiple grit options
• Five bond options for varying concrete hardness
• Slide-Mag / Lavina-style QuickChange attachment
• Compatible with select Lavina, Bartell Global, and EDCO grinders

Which Segment Style Should I Choose?

Single V-Segment — Maximum Aggression
Less surface contact concentrates machine pressure onto a single segment for faster, more aggressive cutting and material removal.

Double V-Segment — Balanced Grinding
Two V-style segments provide more surface contact for a balance of cutting speed, control, and tool life.

Double Round Segment — Maximum Control & Scratch Consistency
Greater surface contact and rounded edges provide a smoother grinding action and help reduce rogue scratches. An excellent choice when surface refinement and scratch consistency are priorities.

Not Sure Which Tooling You Need?

Concrete hardness, abrasiveness, grinder weight, surface condition, and your desired finish can all affect tooling selection.

Give us a call at 253-388-8063. Tell us about your concrete, the grinder you're using, and what you're trying to accomplish, and we'll help you select the appropriate segment style, grit, and bond.

Aftermarket tooling. Lavina® is a trademark of its respective owner. This product is not represented as being manufactured or endorsed by Lavina/Superabrasive.
